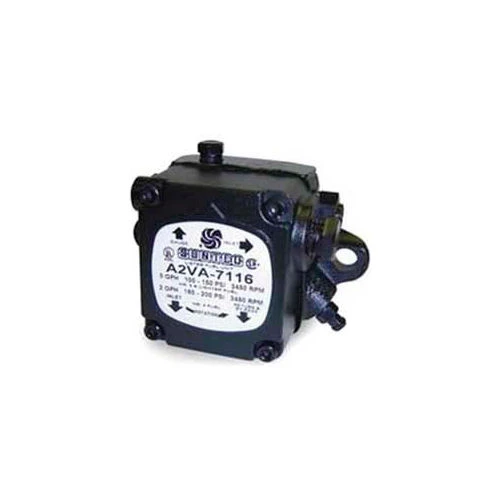

Suntec Single Stage Fuel Pump A2VA7116B, RH-RH, 3450 RPM, 3/2 GPH, 150/200 psi

Original price was: $126.95.Current price is: $98.99.

SKU: Suntec WBB922633 Categories: Fuel Oil Pumps, HVAC Components, Pumps & Circulators Tags: 150/200 psi, 3/2 gal/hr, A2VA7116B, Black, HVAC & Fans, RH-RH, Single Stage, Suntec

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

Suntec Single Stage Fuel Pump A2VA7116B, RH-RH, 3450 RPM, 3/2 GPH, 150/200 psi

Features:

Single-Pipe Installations To 6″ Hg. Vacuum
Two-Pipe Installations To 12″ Hg. Vacuum
Lift Or Gravity Feed Applications With 10 psi Maximum inlet/return pressure
Choice Of 1725, 2850, 3450 Rpm
Suitable For No. 2, No. 1 Fuel Oil, Or Kerosene (biodiesel blends from 6% up to 20% biodiesel, per ASTM D396)
Mounting In Any Position
Factory-Set At 100 psi
Adjustable Range 100-150 psi At 3450 Rpm, 100-135 psi at 1725 Rpm. Models Available To 200 And 300 psi.
NOTE: Rotation (RH = CW) & nozzle location determined by looking at the shaft when unit is oriented with shaft horizontal and decal readable (regulator valve on top).
Made in the USA.

Weight	4.2 lbs
Height	4-3/5 in
Depth	4-11/20 in
Width	3-5/8 in
Rotation & Nozzle Location	RH-RH
Color Family	Black
Nozzle Capacity @ Rated PSI	3/2 gal/hr
Rated Pressure	150/200 psi
Manufacturers Part Number	A2VA7116B
Pump Type	Single Stage
Brand	Suntec
Shaft Speed	3450 rpm
Warranty	1 yr
