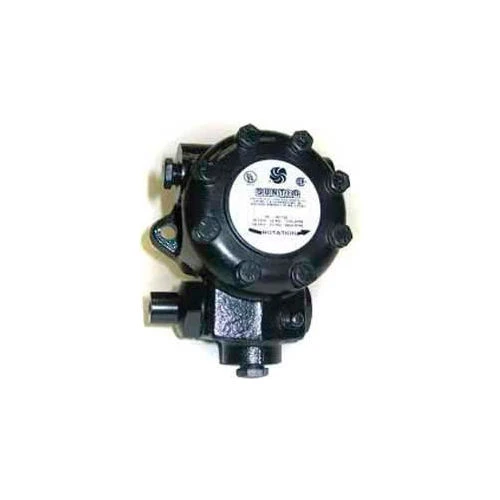

Suntec Model J Single-Stage Fuel Unit J4NB-D1000G, RH-LH, 1725 RPM, 24 GPH, 80 psi

Original price was: $410.95.Current price is: $91.99.

SKU: Suntec WBB922655 Categories: Fuel Oil Pumps, HVAC Components, Pumps & Circulators Tags: 24 gal/hr, 80 psi, Black, HVAC & Fans, J4NB-D1000G, RH-LH, Single Stage, Suntec

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

Suntec Model J Single-Stage Fuel Unit J4NB-D1000G, RH-LH, 1725 RPM, 24 GPH, 80 psi

Features:

Single-Pipe Gravity Feed Installations
Two-Pipe Lift Installations To 12″ Hg. Vacuum
Lift Or Gravity Feed Applications With 10 psi Maximum Inlet/Return Pressure
Capacities To 60 GPH
Six Pressure Options, 10 To 300 psi
For No. 4 And Lighter Fuel Oils (Gasoline And Jp Fuels,Special)
Hub And Flange Mounting In Any Position.
Made in the USA.

Click for Installion Details
Click for Brochure

Weight	4.2 lbs
Height	4-3/5 in
Depth	6-3/5 in
Width	3-5/8 in
Rotation & Nozzle Location	RH-LH
Color Family	Black
Nozzle Capacity @ Rated PSI	24 gal/hr
Rated Pressure	80 psi
Manufacturers Part Number	J4NB-D1000G
Pump Type	Single Stage
Brand	Suntec
Shaft Speed	1725 rpm
Warranty	1 yr
