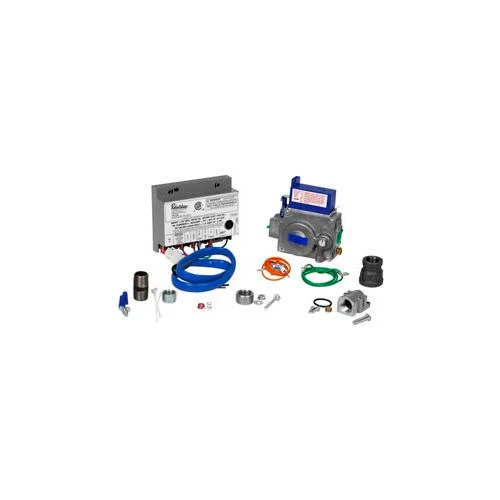

Robertshaw Pilot Ignition System, 1/2" x 1/2" Gas Valve and Lockout Ignition Unit

The Uni-Line 712 series pilot ignition system features an ignition unit and gas valve. Gas valve has natural gas pressure regulator set at 3.5″ WC. A separate LP gas pressure regulator set at 11.0″ WC is also included. 170,000 Btu Max Nat Gas/272,000 Btu Max LP gas. Features flame rectification with solid-state logic and flame sensing to provide automatic sequencing that will ensure proper operation of an intermittent pilot ignition device. The 712 series pilot ignition system features quick and easy installation with complete in-depth instructions and trouble shooting information. The 712 pilot ignition systems are available with one of four different gas valve types to fit a wide range of furnace applications. Depending on the model of gas valve used, 712 systems are available to handle applications up to 720,000 Btu (natural gas). The SP845 lockout ignition control used in the 712 Lockout Uni-Kits, provides 90 seconds of spark followed by a six minute time delay (purge) period between ignition attempts. After three tries, if no pilot flame is sensed, SP845 goes into a 1 hour lockout period. At the end of the 1 hour lockout period, if the demand for heat is still present, unit repeats the three tries for ignition. Made in the USA.
