McDonnell & Miller Series WFE UNI-Match Electric Water Feeder, 24V WFE-24

Original price was: $417.95.Current price is: $97.99.

SKU: McDonnell & Miller WBB916142 Categories: HVAC Hardware & Parts, Hydronic Hardware & Parts Tags: 100°F (38°C) °F, 120°F (49°C), 150 psi psi, 169550, Electric Water Feeder, HVAC & Fans, McDonnell & Miller, WFE 24

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

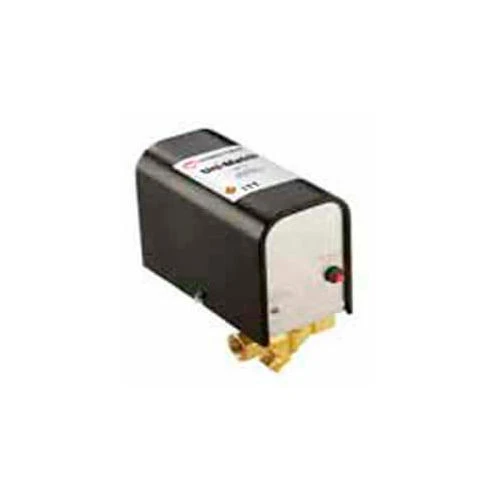

McDonnell & Miller Series WFE UNI-Match Electric Water Feeder, 24V WFE-24

Field-adjustable dwell-feed cycles. Multi-Color LED status indicator A. Manual feed buttoned. Hard-stop limit to minimize chances of flooding the boiler. Compatible with all electronic & mechanical Low Water Cut-Offs B H. Includes adapters for connection to 1/2″ copper tubing . Removable strainer (replace after cleaning). Maximum water pressure 150 psi (10. 5 kg/cm2). Maximum boiler pressure 15 psi (1 kg/cm2). Maximum water temperature 120°F (49°C). Maximum ambient temperature 100°F (38°C). Maximum power consumption (during water feed only) – 15 VA at 24 VAC – 20 VA at 120 VAC (50 or 60 Hz). Made in the USA.

Weight	2.9 lbs
Height	6-1/4 in
Depth	5-13/16 in
Width	2-7/8 in
Max Ambient Temperature	100°F (38°C) °F
Type	Electric Water Feeder
Series	WFE 24
Max Water Supply Pressure	150 psi psi
Manufacturers Part Number	169550
Max Inlet Water Temperature	120°F (49°C)
Max Boiler Pressure	15 psi psi
Max Power Consumption	15 VA at 24 VAC– 20 VA at 120 VAC (50 or 60 Hz)
Brand	McDonnell & Miller
Warranty	1 yr
