McDonnell & Miller Series 51 Mechanical Water Feeder/Low Water Cut-off

Original price was: $553.00.Current price is: $96.99.

SKU: McDonnell & Miller WBB916076 Categories: HVAC Hardware & Parts, Hydronic Hardware & Parts Tags: 134700, 150 psi psi, 35 psi, 51, HVAC & Fans, Low Pressure Steam And Hot Water Boilers With Cold Water Feed, McDonnell & Miller, Mechanical Water Feeders/Low Water Cut-off

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

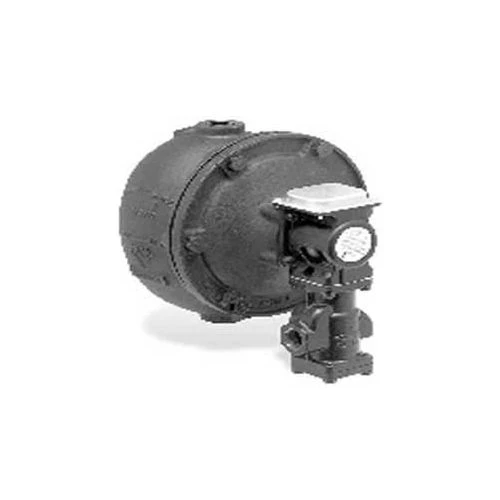

McDonnell & Miller Series 51 Mechanical Water Feeder/Low Water Cut-off

For low pressure steam and hot water boilers larger than 5,000 sq. ft. (465m2) capacity with cold water feed. Quick-change replaceable cartridge valve and strainer. Optional features – No. 2 switch – Manual reset – Float block. Proportional feed action. Model 51 can be field upgraded with a No. 2 switch to add low water cut-off function. Maximum water supply pressure 150 psi (10. 5 kg/cm2). Maximum inlet water temperature 120°F (49°C). Maximum vessel pressure 35 psi (2. 5 kg/cm2). Made in the USA.

Weight	35.3 lbs
Height	10-3/8 in
Depth	12 in
Type	Mechanical Water Feeders/Low Water Cut-off
Max Vessel Pressure	35 psi
Series	51
For Use With	Low Pressure Steam And Hot Water Boilers With Cold Water Feed
Max Water Supply Pressure	150 psi psi
Manufacturers Part Number	134700
Max Inlet Water Temperature	120°F (49°C)
Brand	McDonnell & Miller
Warranty	1 yr
