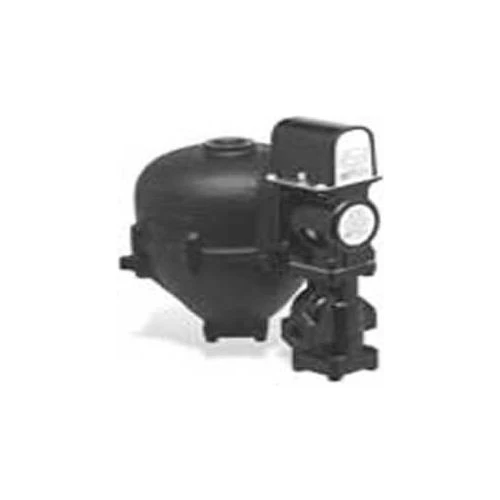

McDonnell & Miller Series 247-2 Mechanical Water Feeder/Low Water Cut-off With #2 Switch

For steam and hot water boilers with cold water feed. Continuous maintenance of minimum safe water level, Independent of electrical service B. Proportional feed action F. Quick-change replaceable cartridge valve and strainer. Quiet, durable operation. Isolated feed valve minimizes lime and scale build-up. Optional features – No. 2 switch – Manual reset. Model 247 can be field upgraded with a No. 2 switch to add low water cut-off function. Maximum water supply pressure 150 psi (10. 5 kg/cm2). Maximum inlet water temperature 120°F (49°C). Maximum vessel pressure 30 psi (2. 1 kg/cm2). Made in the USA.

Weight	22.5 lbs
Height	9-1/8 in
Depth	12 in
Width	7-5/16 in
Type	Mechanical Water Feeders/Low Water Cut-off With #2 Switch
Max Vessel Pressure	30 psi
Series	247
For Use With	Steam And Hot Water Boilers With Cold Water Feed
Max Water Supply Pressure	150 psi psi
Manufacturers Part Number	133800
Max Inlet Water Temperature	120°F (49°C)
Brand	McDonnell & Miller
Warranty	1 yr
