McDonnell & Miller Series 21 Make-Up Water Feeder

Original price was: $473.00.Current price is: $95.99.

SKU: McDonnell & Miller WBB916027 Categories: HVAC Hardware & Parts, Hydronic Hardware & Parts Tags: 126400, 150 psi psi, 21, 35 psi, Boiler Receiver Tanks, HVAC & Fans, Make-Up Water Feeder, McDonnell & Miller

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

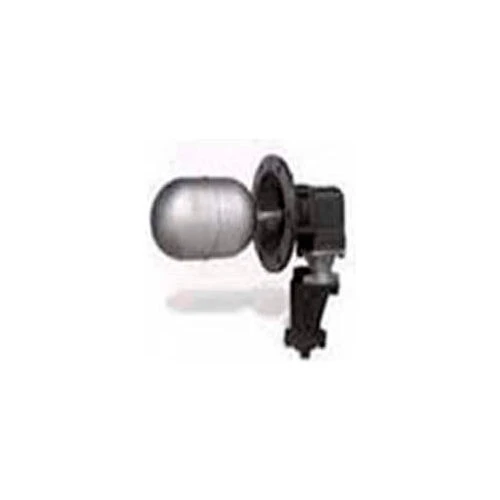

McDonnell & Miller Series 21 Make-Up Water Feeder

For boiler receiver tanks. Direct mounting eliminates need for equalizing connections. Proportional feed action. Mounting Flange – six 7/16″ (11. 1mm) bolt holes on a 5-3/4″ (146mm) bolt circle. Soft seat provides positive seal. Maximum water supply pressure 150 psi (10. 5 kg/cm2). Maximum inlet water temperature 120°F (49°C). Maximum vessel pressure 35 psi (2. 5 kg/cm2). Made in the USA.

Weight	15.3 lbs
Height	11-13/16 in
Depth	14-1/2 in
Type	Make-Up Water Feeder
Max Vessel Pressure	35 psi
Series	21
For Use With	Boiler Receiver Tanks
Max Water Supply Pressure	150 psi psi
Manufacturers Part Number	126400
Max Inlet Water Temperature	120°F (49°C)
Brand	McDonnell & Miller
Warranty	1 yr
