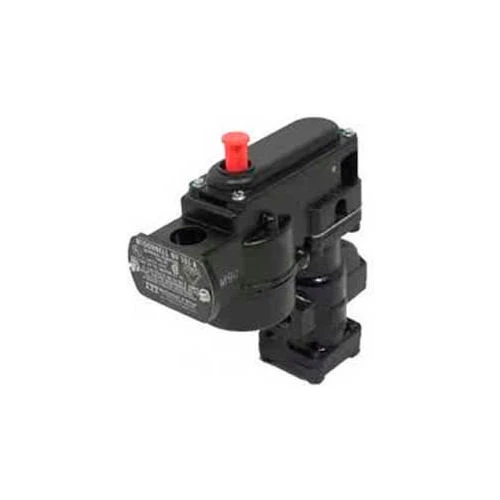

McDonnell & Miller Series 101-A Electric Water Feeder 120V For Steam Boilers

Original price was: $571.00.Current price is: $96.99.

SKU: McDonnell & Miller WBB916144 Categories: HVAC Hardware & Parts, Hydronic Hardware & Parts Tags: 101-A, 120°F (49°C), 150 psi psi, 169400, Electric Water Feeders For Steam Bolilers, HVAC & Fans, Low Pressure Steam Boilers With Cold Water Feed, McDonnell & Miller

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

McDonnell & Miller Series 101-A Electric Water Feeder 120V For Steam Boilers

For low pressure steam boilers with cold water feed. Eliminates necessity to manually add water to the boiler. Can be used with mechanical or electronic low water cut-off controls. Quick-change replaceable cartridge valve and strainer. Manual feed button. Model 101-A features a 120 VAC solenoid. Model 101-A-24 features a 24 VAC solenoid and a separate 50VA transformer. Maximum water supply pressure 150 psi (10. 5 kg/cm2). Maximum boiler pressure 25 psi (1. 8 kg/cm2). Maximum inlet water temperature 120°F (49°C). Maximum power consumption – 40 VA at 24 VAC – 40 VA at 120 VAC. Made in the USA.

Weight	5.5 lbs
Height	7-9/16 in
Depth	6-7/8 in
Width	3 in
Type	Electric Water Feeders For Steam Bolilers
Series	101-A
For Use With	Low Pressure Steam Boilers With Cold Water Feed
Max Water Supply Pressure	150 psi psi
Manufacturers Part Number	169400
Max Inlet Water Temperature	120°F (49°C)
Max Boiler Pressure	25 psi psi
Max Power Consumption	40 VA at 24 VAC– 40 VA at 120 VAC
Brand	McDonnell & Miller
Warranty	1 yr
