McDonnell & Miller General Purpose FS8-W Flow Switch

McDonnell & Miller General Purpose FS8-W Flow Switch - Image 2

McDonnell & Miller General Purpose FS8-W Flow Switch - Image 3

McDonnell & Miller General Purpose FS8-W Flow Switch - Image 4

McDonnell & Miller General Purpose FS8-W Flow Switch - Image 5

McDonnell & Miller General Purpose FS8-W Flow Switch - Image 6

McDonnell & Miller General Purpose FS8-W Flow Switch - Image 7

McDonnell & Miller General Purpose FS8-W Flow Switch - Image 8

McDonnell & Miller General Purpose FS8-W Flow Switch

Original price was: $294.95.Current price is: $96.99.

SKU: McDonnell & Miller WBB46868 Categories: Expansion Tanks & Vents, HVAC Components, Pumps & Circulators Tags: 225 °F, 27 GPM gal/min, 3.4 GPM - 15 GPM gal/min, 32 °F, 7.4 FLA-44.4 LRA @ 120V;3.7 FLA-22.2 LRA @ 240V A, HVAC & Fans, McDonnell & Miller, Single Pole Double Throw - Snap Switch

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

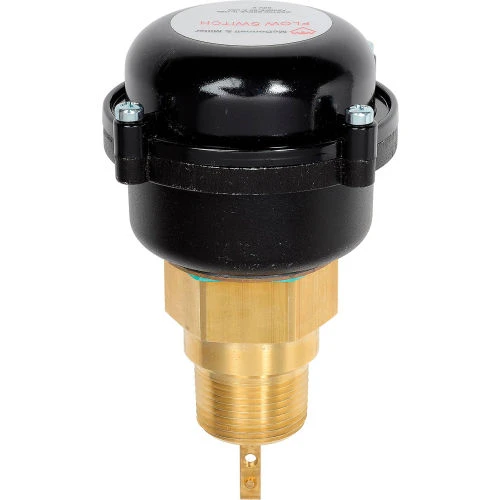

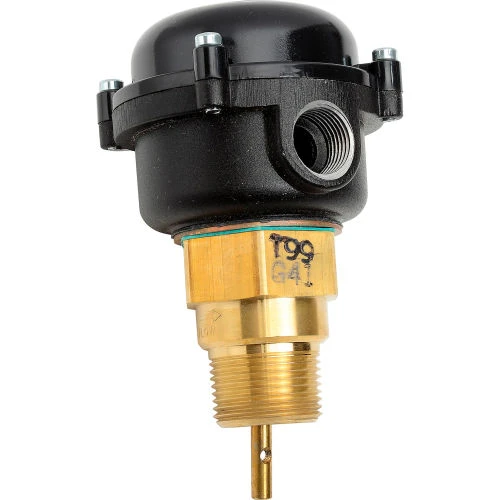

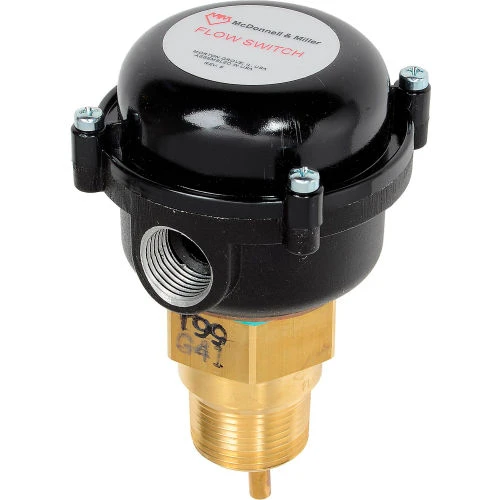

General Purpose FS8-W Flow Switch

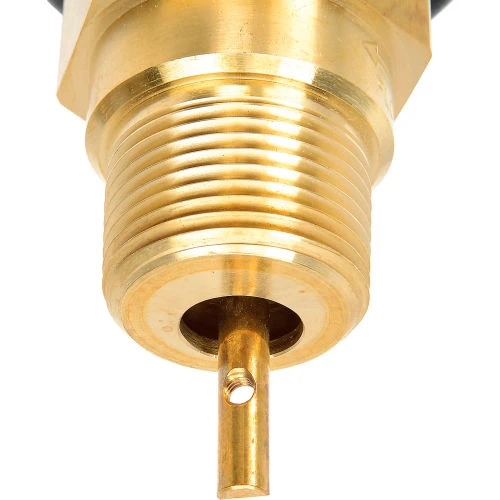

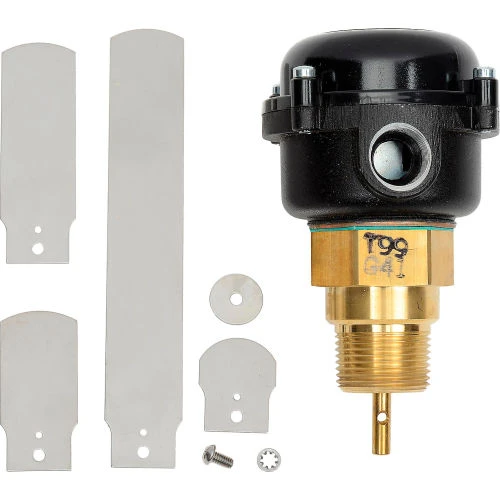

For general purpose application with environmental exposure, or those requiring a water-tight,, dust tight, or a NEMA 4X rated flow switch, single pole, double throw snap switch, 1″ NPT. Sealed Monel Bellow. Four stainless steel paddles included: 1″, 2″, 3″ & 6″.

Size	1 NPT in
Height	8-3/8 in
Width	3-1/4 in
Length	3-1/4 in
Type	Single Pole Double Throw – Snap Switch
Min Operating Temperature	32 °F
Amperage	7.4 FLA-44.4 LRA @ 120V;3.7 FLA-22.2 LRA @ 240V A
Max Temperature	225 °F
No Flow	3.4 GPM – 15 GPM gal/min
Max Flow	27 GPM gal/min
Manufacturers Part Number	120601
Enclosure	NEMA 4X
Flow Actuation	4.9 GPM – 17.6 GPM gal/min
Brand	McDonnell & Miller
