McDonnell & Miller General Purpose FS5-3/4 Flow Switch

Original price was: $401.95.Current price is: $91.99.

SKU: McDonnell & Miller WBB46866 Categories: Expansion Tanks & Vents, HVAC Components, Pumps & Circulators Tags: 1.1 GPM - 10 GPM gal/min, 16.6 GPM gal/min, 250 F °F, 32 F °F, 7.4 FLA-44.4 LRA @ 120V;3.7 FLA-22.2 LRA @ 240V A, HVAC & Fans, McDonnell & Miller, Single Pole Double Throw - Snap Switch

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

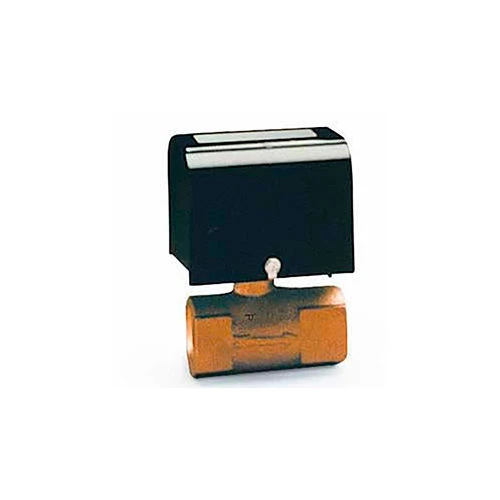

General Purpose FS5-3/4 Flow Switch
For general purpose application requiring low flow rate sensitivity. In-line configuration eliminates need for a pipe tee. Single pole, double throw snap switch.

Size	3/4 NPT in
Height	5-1/16 in
Width	3-3/16 in
Length	3-3/16 in
Type	Single Pole Double Throw – Snap Switch
Min Operating Temperature	32 F °F
Amperage	7.4 FLA-44.4 LRA @ 120V;3.7 FLA-22.2 LRA @ 240V A
Max Temperature	250 F °F
No Flow	1.1 GPM – 10 GPM gal/min
Max Flow	16.6 GPM gal/min
Manufacturers Part Number	114760
Enclosure	NEMA1
Flow Actuation	1.5 GPM – 15 GPM gal/min
Brand	McDonnell & Miller
