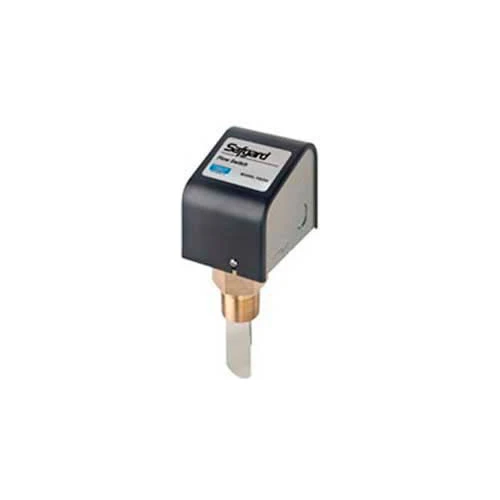

Hydrolevel Safgard™ Model FS200 Liquid Flow Switch
Original price was: $138.95.$93.99Current price is: $93.99.
- Sustainable materials, for a better tomorrow.
- Efficiency meets excellence in customer care.
- Fast, friendly, always here to help.
- Buy Quality, Live Better
EPDM seal for superior performance over mechanical bellows. Universal design replaces flow switches by Mcdonnell Miller, Penn, Taco, Potter, Watts and others. Single pole double throw switch for operating signal devices, motors, alarms, metering devices and heating units. Includes four heavy duty stainless steel paddles. Two 7/8″ electrical knock-outs for 1/2″ conduit. For use on 1″ to 6″ diameter pipe. 1″ Npt pipe connection. Made in the USA.
Click For Instructions
| Weight | 2.5 lbs |
|---|---|
| Control Chassis Material | 13 gauge galvanized steel |
| Brand | Hydrolevel |
| Max Pressure | 160 psi |
| Pilot Duty Rating | 125VA@120/240VAC |
| Enclosure | NEMA 1 General Purpose |
| Manufacturers Part Number | FS200 |
| Control Cover Material | 16 gauge powder coated steel |
| Min Fluid Temperature | 32°F (0°C) |
| Height | 13-1/2 in |
| For Use With | 1" to 6" pipe sizes |
| Contacts | SPDT switch 7.4 FLA, 44.4 Locked Rotor Amp @120VAC Motor Duty |
| Color Family | Black |
| Max Fluid Temperature | 250°F (121°C) °F |
| Width | 2-7/8 in |
| Depth | 5-4/5 in |
| Warranty | 1 yr |
