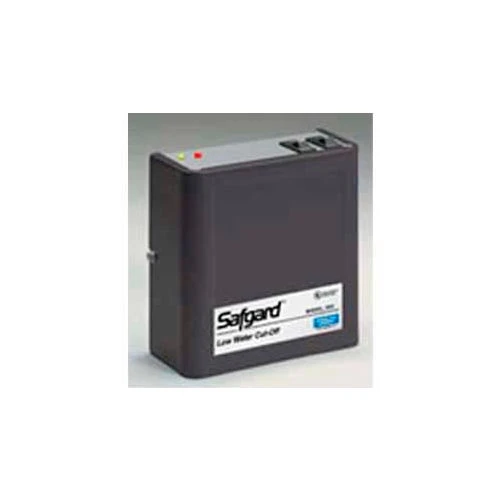

Hydrolevel Safgard™ 500 Series Oil Hot Water Low Water Cut-off, 120V

Original price was: $258.95.Current price is: $93.99.

SKU: Hydrolevel WBB974605 Categories: HVAC Hardware & Parts, Hydronic Hardware & Parts Tags: 120 V, 5.8 Full Load Amps, 34.8 Locked Rotor Amps, Black, Hot Water, HVAC & Fans, Hydrolevel, Manual Reset, Burner Circuit Test Button, LED Indicators, SPDT

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

Safgard™ 500 Series 24V Gas Hot Water Low Water Cut-off

Hydrolevel low water cut-off electronically monitor the water level in low pressure steam boilers. The probe sensor mounts directly in the boiler at or above the lowest safe water level. The control allows the burner to operate normally as long as the water level remains in contact with the probe. Made in the USA.

Click for Instructions

Weight	2..85 lbs
Switching Capacity	5.8 Full Load Amps, 34.8 Locked Rotor Amps
Warranty	1 yr
Brand	Hydrolevel
Max Pressure	160 psi
Max Steam Pressure	250 psi
Power Consumption Volt Amps	2 A
Manufacturers Part Number	500
Includes	Manual Reset, Burner Circuit Test Button, LED Indicators
Height	5-13/16 in
Voltage	120 V
Switch Contacts	SPDT
Color Family	Black
Type	Hot Water
Width	5-1/2 in
Depth	2-3/8 in
Certifications	Meets ASME CSD-1 requirements, UL 353
