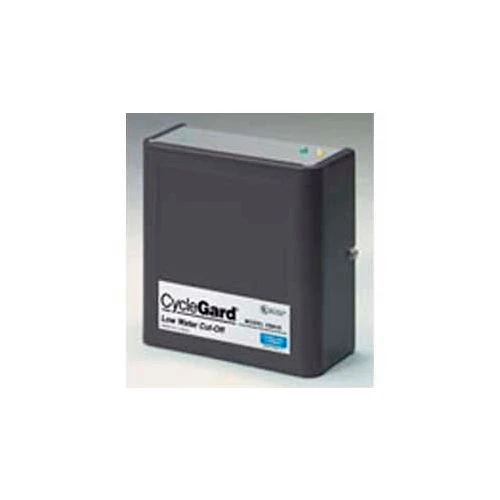

Hydrolevel Cyclegard® CG400 Series CG450-2060 Low Water Cut-Off, Auto Reset, Direct Boiler Mounting, 120V

Original price was: $255.95.Current price is: $91.99.

SKU: Hydrolevel WBB974583 Categories: HVAC Hardware & Parts, Hydronic Hardware & Parts Tags: 120 V, 15 Sec. Off Delay, 30 Sec. On Delay, Auto Reset, Low Water Indicating Light, 5.8 Full Load Amps, 34.8 Locked Rotor Amps, Black, HVAC & Fans, Hydrolevel, SPDT, Steam

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

Cyclegard® CG400 Series CG450-2060 Low Water Cut-Off, Auto Reset, Direct Boiler Mounting, 120V

Features:

Intermittent Level Test Maximum Protection for Foaming Boilers
15 Second Burner Off Delay
30 Second Burner On Delay
Automatic Reset
Low Water Indicating Light
Direct Boiler Mounting – Eliminates Blowdowns Burner circuit contacts open after 15 second delay in a low water condition. Delay prevents short cycling caused by momentary fluctuations in the boiler water level. Automatically reactivates burner circuit 30 seconds after water reaches the probe, allowing optional water feeder to raise water level above the probe. Intermittent Level Test (ILT) feature provides maximum boiler protection by removing power from the burner circuit at set intervals. Models ending in “1090” perform the ILT every 10 minutes for 90 seconds.
Models ending in “1560” perform the ILT every 15 minutes for 60 seconds, Models ending in “2060” perform the ILT every 20 minutes for 60 seconds, Models ending in “2090” perform the ILT every 20 minutes for 90 seconds
Made in the USA.

Weight	2.85 lbs
Height	5-4/5 in
Depth	2-3/8 in
Width	5-1/2 in
Type	Steam
Color Family	Black
Switch Contacts	SPDT
Voltage	120 V
Includes	15 Sec. Off Delay, 30 Sec. On Delay, Auto Reset, Low Water Indicating Light
Switching Capacity	5.8 Full Load Amps, 34.8 Locked Rotor Amps
Manufacturers Part Number	CG450-2060
Power Consumption Volt Amps	4.2 A
Max Steam Pressure	15 psi
Performs Intermittent Level Test	every 20 minutes for 60 seconds
Brand	Hydrolevel
Warranty	1 yr
