Features

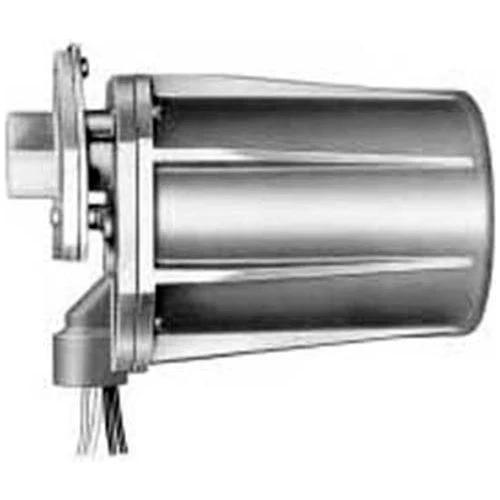

- Dynamic self-checking flame detector used with R7861 Dynamic Self-check Amplifiers for sensing the ultraviolet radiation generated by the combustion of gas, oil, or other fuels
- Oscillating shutter interrupts ultraviolet radiation reaching the UV sensor to provide the UV sensor tube checking function
- Can be mounted horizontally, vertically or at any angle in between
- The detector requires faceplate alignment and has integral locating reference points to assure proper operation of the shutter mechanism
- Field replaceable ultraviolet sensing tube and quartz viewing window
- Models with threaded conduit fitting and color coded lead wires allow rapid electrical installation
- C7061A1038 or A1046 5 pin Brad Harrison type (formally 41307N) mating connector not supplied nor available through Honeywell
- Two detectors can be wired in parallel to reduce nuisance shutdowns in difficult flame sighting applications
- Protective heat block built into mounting flange
- -40 F (-40 C) rated ultraviolet sensing tube is supplied
- C7061E meets NEMA 4 standards with viewing window rated to 20 PSI
- C7061F has an explosion-proof housing for use in hazardous atmospheres with a viewing window rated to 100 PSI
