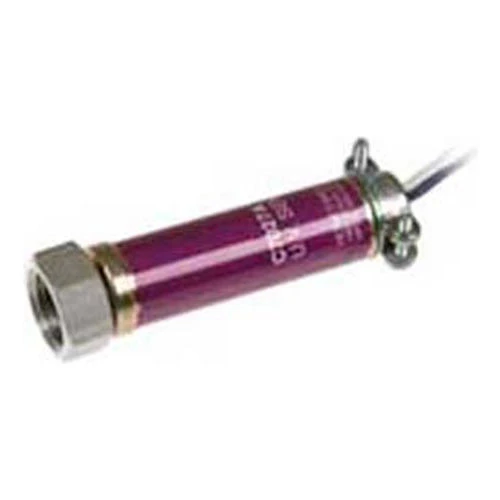

Honeywell Flame Sensor C7027A1023, UV Minipeeper, 0 To 215°F Range, 1/2" Mount

Original price was: $237.95.Current price is: $94.99.

SKU: Honeywell WBB762743 Categories: Gas Ignition & Pilots, HVAC Components, Ignition & Combustion Components Tags: 2 NEC Class 1 Lead wires, C7027A1023, Coal / Gas / Oil Fired Burners, Flame Sensor, Ultraviolet, Minipeeper, Honeywell, HVAC & Fans, Integral Nut For 1/2" Sighting Pipe, Minipeeper

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

Honeywell Flame Sensor C7027A1023, UV Minipeeper, 0 To 215°F Range, 1/2″ Mount

Features

Compact flame detector for use with flame safeguard controls with ultraviolet amplifiers
Use with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection
C7027 mounts on a 1/2″ sighting pipe by using an integral collar
Detectors can be wired in parallel for difficult sighting applications
C7027 seals against pressures up to 5 PSI (34.5KPA) when correctly installed
Allows for blast tube mounting due to compact size
C7044 mounts with a two screw bracket
The C7044 UV sensor tube is enclosed in a stainless steel housing
C7044 has the capability of side or end viewing in flame monitoring applications

Weight	0.5 lbs
Lead Length	96 in
Height	5-1/2 in
Width	3-1/2 in
Length	3 in
Type	Flame Sensor, Ultraviolet, Minipeeper
For Use With	Coal / Gas / Oil Fired Burners
Electrical Connections	2 NEC Class 1 Lead wires
Mounting Location	Integral Nut For 1/2" Sighting Pipe
Description	Minipeeper
Manufacturers Part Number	C7027A1023
Comments	Detects UV Radiation In Flames
Brand	Honeywell
Warranty	1 yr
