Sale!

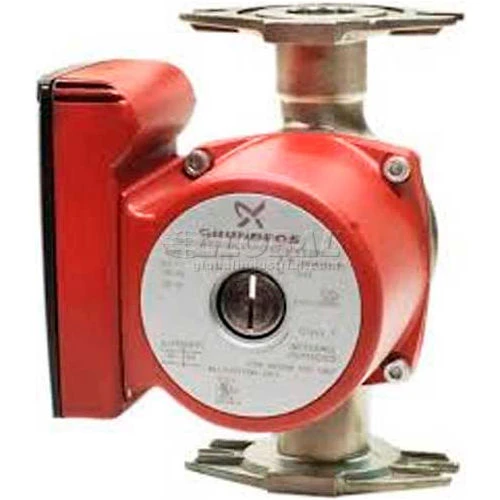

Grundfos UP15-29SU Circulator Water Pump 59896784, Stainless Steel, 230V, 1/25 HP

Original price was: $344.95.Current price is: $93.99.

SKU: Grundfos WBB1012630 Categories: Circulators, HVAC Components, Pumps & Circulators Tags: 1, 10 μF/180 V, 104 °F °F, 145 PSI, 230°F °F, 97 W, Grundfos, HVAC & Fans

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

Grundfos UP15-29SU Circulator Water Pump 59896784, Stainless Steel, 230V, 1/25 HP

Choosing a stainless steel circulator ensures that you will always have the right pump – whether it is an open or closed system. Grundfos offers three stainless steel models, including two that feature our 3-speed Super Brute technology.

Features:

Perfect for hot water recirculation applications
Stainless steel – Protects against corrosive fluids
Available in standard union or two-bolt flange
3-speed Super Brute technology available
Timer and line-cord options available
Integrated, removable check valve
Quick connect terminals – for easy installation
Highest starting torque in its class
Industry leading three-year warranty
Made in the USA.

Weight	5.32 lbs
Respirator Connection Type	S.S. Union
Warranty	1 yr
System Type	Open
Housing Material	Stainless Steel
Max Power Input	87 W
Voltage	0.42 V
Number of Poles	2
Max Amps	0.42 A
Min Fluid Temperature	35.6° °F
Hertz	60 Hz
Color Family	Red
Horsepower	1/25 HP
Brand	Grundfos
Manufacturers Part Number	59896784
Head	0-9.7 ft
Ambient Max Temperature @ 176°F Liquid	176 °F °F
Impeller Material	Composite, PES
Flow	0-20.5 gal/min
Port to Port Length	5-7/8 in
Pressure	145 psi
Number of Speeds	1
Run Capacitor Size	10 μF/180 V
Max Watts	97 W
Max Fluid Temperature	230°F °F
Max Ambient Temperature	104 °F °F
Length	4-1/8 in
Width	5-1/2 in
Height	6 in
Certifications	UL, CSA
