Grundfos UP15-18B5 Circulator Water Pump 59896114, Bronze, 115V, 1/25 HP

Original price was: $361.95.Current price is: $98.99.

SKU: Grundfos WBB1012660 Categories: Circulators, HVAC Components, Pumps & Circulators Tags: 1, 10 μF/180 V, 104 °F °F, 230°F °F, 85 W, 9H, Grundfos, HVAC & Fans

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

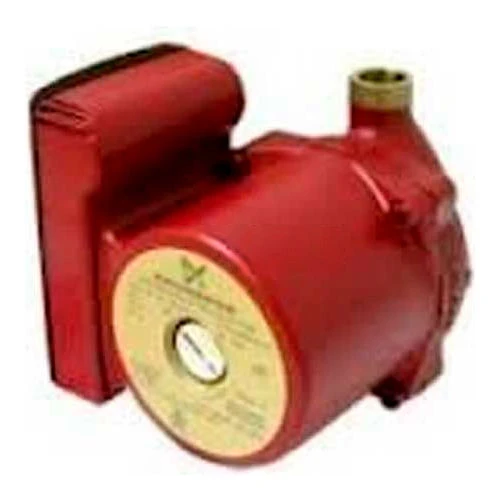

Grundfos UP15-18B5 Circulator Water Pump 59896114, Bronze, 115V, 1/25 HP

The Grundfos circulator pumps, Series UP, are specifically designed for heating systems. The pumps are also suitable for circulation of hot domestic water and for circulation of liquid in cooling and air-conditioning systems.

Features:

Bronze and stainless steel construction.
Wet rotor design.
Composite impeller.
Eliminates and prevents corrosive effects of fresh water.
Maintenance-free, low energy consumption, easy to install, quiet running.
Improved performance and efficiency.
Pre-program usage times to save power.
No additional wiring required.
Adds to savings by operating pump by sensing the water temperature with optional timer and aquastat.
Made in the USA.

Weight	5.39 lbs
Max Amps	0.74 A
Brand	Grundfos
Horsepower	1/25 HP
Color Family	Red
Hertz	60 Hz
Min Fluid Temperature	35.6° °F
Thermal Protection	Internal
Voltage	0.74 V
Manufacturers Part Number	59896114
Number of Poles	2
Housing Material	Bronze
Max Power Input	85 W
System Type	Open
Warranty	1 yr
Certifications	UL, CSA
Respirator Connection Type	Bronze Sweat
Ambient Max Temperature @ 176°F Liquid	176 °F °F
Head	0-13.8 ft
Max Ambient Temperature	104 °F °F
Height	5 in
Pipe Connection	1/2 Sweat in
Width	4-2/3 in
Length	4 in
Max Fluid Temperature	230°F °F
POS Term Box	9H
Max Watts	85 W
Impeller Material	Composite, PES
Run Capacitor Size	10 μF/180 V
Number of Speeds	1
Motor Protection	Contact
Pressure	145 psi
Port to Port Length	5 in
Flow	0-14.5 gal/min
Flange Standard	USA Sweat
