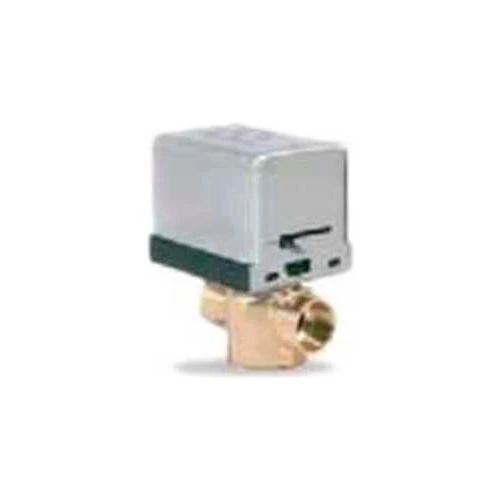

Erie 3/4" General Purpose Sweat Zone Valve With 24V Actuator & End Switch VT2317G13A02A

Erie’s PopTop motorized hydronic valves provide convenient, reliable and easy installation for a variety of heating and cooling applications. Installation is a snap with easy, one-handed removal or engagement of the actuator to the valve body. Push the button and lift. It’s that simple. Made in the USA.

• Actuator can be easily attached after the valve body has been installed into the system
• Mounts quickly and easily without the need of linkages or calibration
• Temperature Range: 32° to 200°F
• 18″ leads for actuators with end switches
• Voltage 24 Vac @ 50/60 Hz, 110 Vac @ 50 Hz and 120 Vac @ 60 Hz, 230 Vac @ 50 Hz, 240 Vac @ 60 Hz, 208 Vac @ 50/60 Hz., 277 Vac @50/60 Hz.
• Up to 75 psi pressure differential close-off
• Power Requirements 6.5 watts, 7.5 Va.
• Control Signal – on/off, 2 position, spring return
• Materials – stainless steel base plate, aluminum cover
• Seat Leakage: Zero Leakage (100% Bubble-Tight Close-Off)

Body Materials:

• Body: Forged Brass
• Stem: Nickel Plated
• Seat: Brass
• Paddle: Buna N
