Sale!

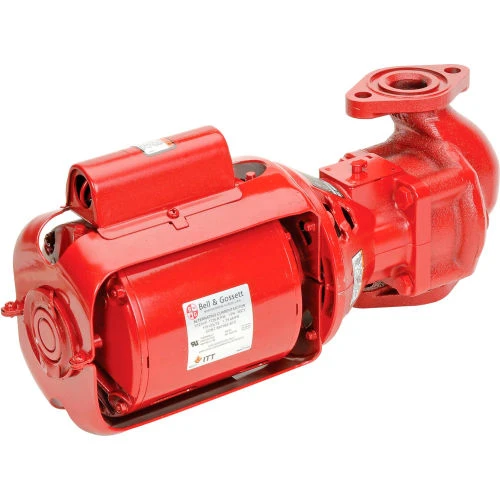

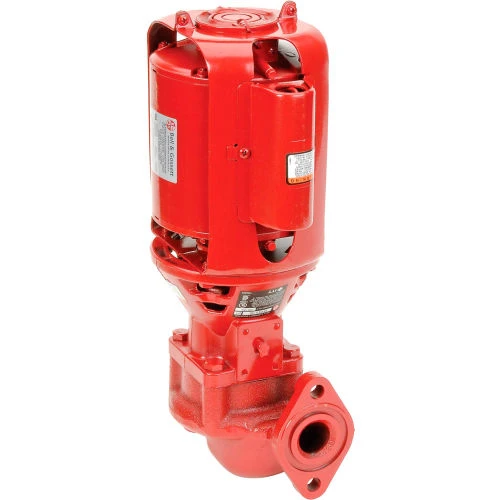

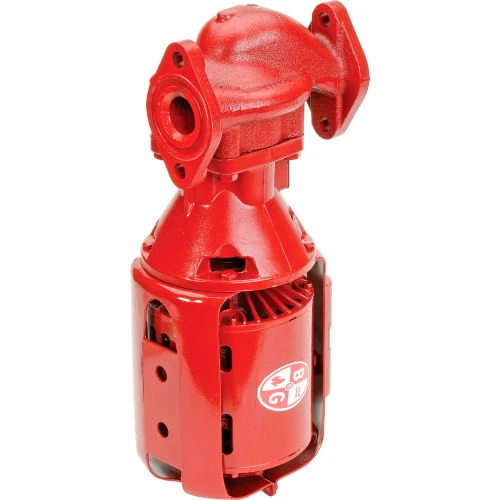

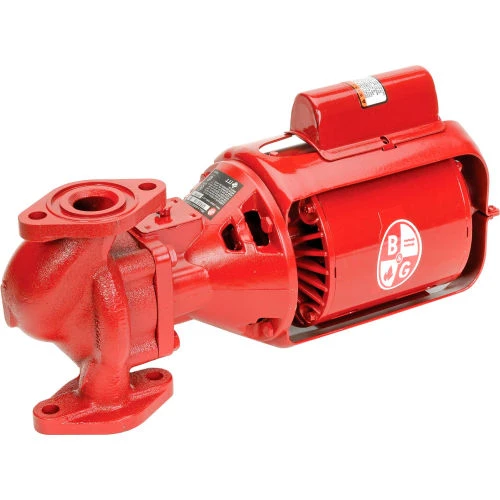

Bell & Gossett Three-Piece Cast Iron Series 100 NFI Circulator Pump 106189 - 1/12 HP

Bell & Gossett Three-Piece Cast Iron Series 100 NFI Circulator Pump 106189 - 1/12 HP - Image 2

Bell & Gossett Three-Piece Cast Iron Series 100 NFI Circulator Pump 106189 - 1/12 HP - Image 3

Bell & Gossett Three-Piece Cast Iron Series 100 NFI Circulator Pump 106189 - 1/12 HP - Image 4

Bell & Gossett Three-Piece Cast Iron Series 100 NFI Circulator Pump 106189 - 1/12 HP - Image 5

Bell & Gossett Three-Piece Cast Iron Series 100 NFI Circulator Pump 106189 - 1/12 HP - Image 6

Bell & Gossett Three-Piece Cast Iron Series 100 NFI Circulator Pump 106189 – 1/12 HP

Original price was: $576.00.Current price is: $96.99.

SKU: Bell & Gossett WBB46933 Categories: Circulators, HVAC Components, Pumps & Circulators Tags: 1.75 A, 1/12 HP, 125 psi, 1725 rpm, 225 °F, 6-3/8, Bell & Gossett, HVAC & Fans

Sustainable materials, for a better tomorrow.
Efficiency meets excellence in customer care.
Fast, friendly, always here to help.
Buy Quality, Live Better

Three-Piece Cast Iron Series 100 NFI Circulator Pump 106189 – 1/12 HP
three piece design oilable, repairable pump – sleeve bearing design, flexible spring design coupler, mechanical seal. Max. working pressure 125 psi, max. temperature 225°F; 225°F with optional high temperature seal.Made in the USA.

Inlet Connection NPT	3/4;1; 1-1/4; 1-1/2 in
Matching Connecting Included	No
Brand	Bell & Gossett
Housing Material	Cast Iron
Respirator Connection Type	Flange
Manufacturers Part Number	106189
Phase	1
Voltage	115 V
Impeller Material	Polypropylene
RPM	1725 rpm
Motor Type	ODP
Pressure	125 psi
Flange Face to Face	6-3/8"
Max Temperature	225 °F
Amperage	1.75 A
Horsepower	1/12 HP
Warranty	18 mo
