permanently lubricated maintenance free circulator, dry-motor design, 25% more efficient than competition. Carbon/silicon caarbide seal on a stainless steel shaft sleeve for long life and rugged operation. Max. working pressure 150 psig, max. operating temperature 225°F.
Bell & Gossett Maintenance-Free Series PL™ Bronze Circulator PL 30B Pump 1BL013LF – 1/12HP, 115V
$496.00 Original price was: $496.00.$91.99Current price is: $91.99.
SKU: Bell & Gossett WBB46900 Categories: Circulators, HVAC Components, Pumps & Circulators Tags: 1.75 A, 1/12 HP, 225 °F, 2650 rpm, 6-3/8, 60 Hz, Bell & Gossett, HVAC & Fans
- Sustainable materials, for a better tomorrow.
- Efficiency meets excellence in customer care.
- Fast, friendly, always here to help.
- Buy Quality, Live Better

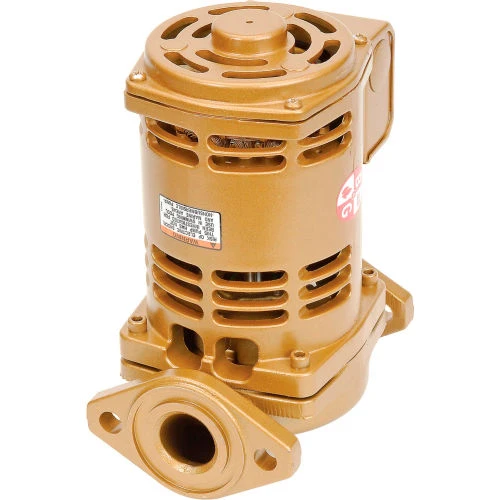

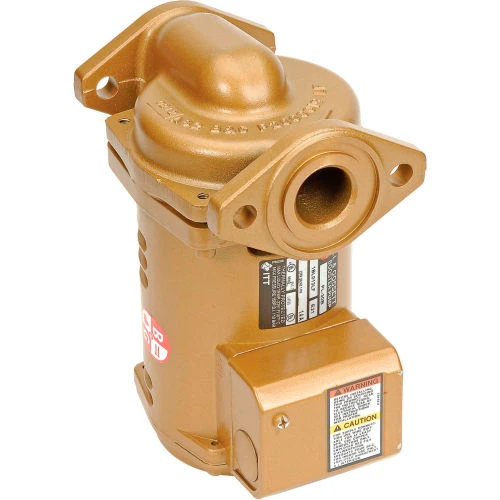

Maintenance-Free Series PL™ Bronze Circulator PL 30B Pump 1BL013LF – 1/12HP, 115V/1/60
permanently lubricated maintenance free circulator, dry-motor design, 25% more efficient than competition. Carbon/silicon caarbide seal on a stainless steel shaft sleeve for long life and rugged operation. Max. working pressure 150 psig, max. operating temperature 225°F.
permanently lubricated maintenance free circulator, dry-motor design, 25% more efficient than competition. Carbon/silicon caarbide seal on a stainless steel shaft sleeve for long life and rugged operation. Max. working pressure 150 psig, max. operating temperature 225°F.
| Inlet Connection NPT | 3/4;1; 1-1/4; 1-1/2 in |
|---|---|
| Matching Connecting Included | No |
| Brand | Bell & Gossett |
| Housing Material | Bronze |
| Respirator Connection Type | Flange |
| Manufacturers Part Number | 1BL013LF |
| Phase | 1 |
| Voltage | 115 V |
| Impeller Material | Glass Filled Noryl® |
| RPM | 2650 rpm |
| Motor Type | ODP |
| Pressure | 150 psi |
| Flange Face to Face | 6-3/8 |
| Max Temperature | 225 °F |
| Amperage | 1.75 A |
| Hertz | 60 Hz |
| Horsepower | 1/12 HP |
| Warranty | 18 mo |
