Bell & Gossett High Pressure Brazed Plate Heat Exchanger with Mounting Tabs, BP410-20MT
Original price was: $500.00.$98.99Current price is: $98.99.
- Sustainable materials, for a better tomorrow.
- Efficiency meets excellence in customer care.
- Fast, friendly, always here to help.
- Buy Quality, Live Better

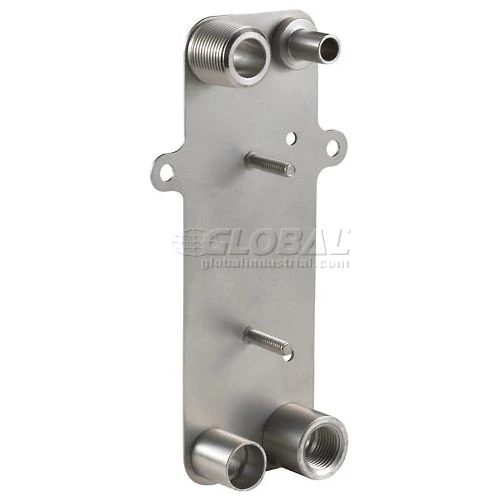

B&G Hydronic BPX brazed plate heat exchangers for residential/light commercial applications offer a unique mounting system and the highest level of thermal efficiency and durability in a compact, low cost unit. The unique integral mounting tabes and connection locations allow for easy installation to any hydronic heating panel without the need or cost of a separate mounting bracket. 1″ NPT Connection Type. 5-5/8″W x 3-5/16″D x 12-1/4″H.
| Height | 12-1/4 in |
|---|---|
| MNPT | 1 in |
| Depth | 3-5/16 in |
| Width | 5-5/8 in |
| Brazing Material | Copper |
| Material | Stainless Steel |
| Manufacturers Part Number | 5-694-10-020-002 |
| Design Pressure | 435 psi |
| Design Temperature | -310 to 450 |
| Brand | Bell & Gossett |
